VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Fort Worth, TX | Lightwell Windows Fort Worth

The VLX 80 Fixed / Picture Window from ViewLux is a non-operable window built around one idea: as much glass as the frame will physically allow. It delivers floor-to-ceiling views with no visible hardware, no moving parts to maintain, and a slim 1.97-inch profile that practically disappears into the wall. For Fort Worth homeowners doing modern builds, mid-century renovations, or simply replacing a worn-out picture window that faces the backyard, this is the window that gets the frame out of the way. Lightwell Windows Fort Worth is an authorized ViewLux installation partner, which means you get manufacturer-backed product support and a local crew that installs it correctly. Call (682) 900-6694 to talk specs, pricing, and lead times.

Call (682) 900-6694

Product Overview – VLX 80 Fixed / Picture Window

The VLX 80 is a fixed window, which means it doesn’t open. That’s not a limitation, it’s the whole point. Because there are no sashes, no hinges, and no operating hardware, the frame can be thinner and the glass area much larger than what you’d get on a casement or slider of the same rough opening. The result is what architects call a maximally glazed opening: uninterrupted sightlines, more natural light, and a cleaner look from both inside and outside.

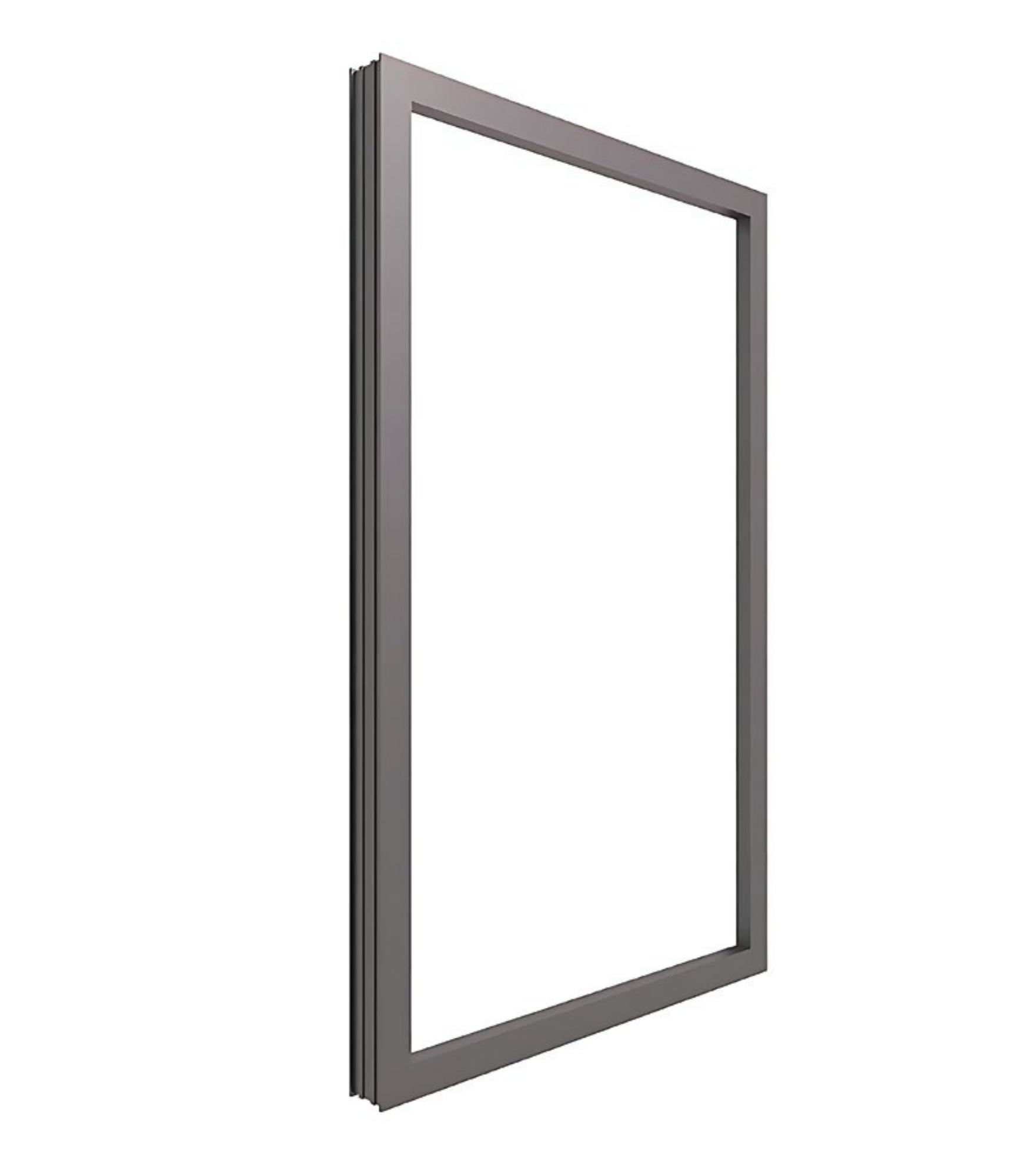

In Fort Worth, we see this window specified most often in living rooms that face a pool, dining rooms with a view of the Trinity Trails corridor, and front elevations where homeowners want a dramatic focal point. It also works well as a transom or a tall side panel paired with a VLX 80 sliding door or casement. The 0.079-inch wall thickness on the aluminum extrusion keeps the frame rigid without adding bulk, and the overall profile width of 1.97 inches means the frame reads as a thin dark or light line around the glass rather than a chunky border.

The fixed design is also the most energy-efficient configuration available in any window series since there is no operable joint where air can leak. When we install the VLX 80 in Fort Worth homes, we’re usually replacing an older picture window or a bay window that’s lost its seal. Homeowners consistently notice two things after the swap: the room feels brighter and the utility bill stops spiking in July and August. That’s not marketing, that’s what happens when you go from a double-pane unit from 2004 to a properly installed thermally broken aluminum window with Low-E glass.

Durability matters too. Fort Worth gets hail, high wind, and the occasional ice storm. The aluminum frame won’t warp, rot, or absorb moisture like wood or vinyl can. It won’t fade or chalk in the Texas sun the way some painted wood windows do. And because the VLX 80 has zero visible hardware, there are no handles to loosen, no latches to corrode, and no tracks to clean out after a dust storm blows through Parker County.

Technical Specifications

Here are the hard numbers on the VLX 80 Fixed / Picture Window, restated in plain language from manufacturer specs.

• Frame wall thickness: 0.079 inches, heavy enough for large spans but thin enough to keep the profile slim.
• Profile width: 1.97 inches, one of the slimmest fixed-window profiles offered in this price class in Fort Worth.
• Maximum span: up to 120 inches wide, which means a single pane can stretch ten feet across without a center mullion.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint.
• Frame finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Configuration: fixed, non-operable, square or rectangular, single unit or multi-panel installation.
• Performance standards: NFRC-rated energy performance via thermal break technology; AAMA 2400/2410 installation compliance; AAMA 812 low-expansion foam sealant on all perimeter joints.

These specs are the baseline. Glass thickness, laminated layers, and tint levels vary based on what your opening needs to meet local wind-load requirements. We’ll walk through all of that when we spec your project in Fort Worth.

Performance Features

Thermal Efficiency

The VLX 80 uses a thermal break, a non-conductive material inserted between the interior and exterior aluminum profiles. That break stops heat from conducting through the metal frame, which is the biggest weakness of older aluminum windows. Combined with Low-E glass, the VLX 80 earns solid NFRC ratings that keep Fort Worth summers from turning your living room into a greenhouse.

Acoustic Performance

Fixed windows naturally block more sound than operable ones because there is no air gap around a sash. Add laminated glass and you get a noticeable reduction in road noise, which matters if your Fort Worth home sits near I-30, I-35W, or the Chisholm Trail Parkway. We spec laminated glass often for homes in Fairmount, Ryan Place, and Arlington Heights where street traffic is constant.

Airtightness & Weather Seal

Because the VLX 80 has no moving parts, the entire perimeter is sealed at installation. We apply AAMA 812 low-expansion foam sealant around every joint, which fills gaps without warping the frame. The result is a window that doesn’t leak air when a January cold front pushes through Tarrant County.

Waterproofing

Fort Worth gets roughly 36 inches of rain a year, and when it rains hard, it rains sideways. The VLX 80’s fixed design eliminates the most common leak point on any window: the operable joint. Paired with our AAMA 2400/2410-compliant installation process and perimeter flashing, the window is designed to shed water away from the rough opening rather than into your wall cavity.

Wind Resistance

Large fixed glass panels catch a lot of wind load. The VLX 80 is wind-load rated for the climate requirements in North Texas, and the 0.079-inch wall thickness keeps the frame from flexing under pressure. For homes in open areas of Wise County, Parker County, or out near Benbrook Lake, we can upgrade to thicker glass or laminated glass to meet higher wind ratings.

Security & Hardware

A fixed window is inherently harder to break into than an operable one because there is no latch to pry and no track to force open. Laminated glass adds another layer: the glass may crack under force, but the interlayer holds it together, which slows down intruders and keeps glass shards from flying in a storm. There is no visible hardware to corrode, which means the window looks the same in year ten as it did on install day.

Color & Glass Options

ViewLux finishes the VLX 80 in six frame colors. Premium Black is the most popular choice in Fort Worth right now, especially on modern farmhouse and contemporary builds where it creates a crisp contrast against white brick or light stucco. Pure White is the safe choice for traditional brick homes and pairs well with painted trim. Anodized Silver gives a clean commercial or industrial look that works on mid-century homes in areas like Wedgwood and Ridglea. Bronze and Champagne both read as warm metal tones; Bronze skews darker and works with brown brick, while Champagne is lighter and complements limestone and cream stucco. Teak Wood is a wood-grain finish that gives you the look of stained wood from the street with none of the maintenance.

On the glass side, Clear is the default and maximizes light transmission. Low-E is what we recommend for most Fort Worth homes: it blocks infrared heat in summer and holds heat in during winter. Tempered is required by code for any window within 24 inches of a door or close to the floor, which covers a lot of floor-to-ceiling picture window installs. Laminated adds impact resistance and sound damping. Frosted is useful for bathrooms, garage-facing windows, or any spot where you want light without a direct view. Gray Tint and Black Tint reduce glare and solar heat gain, which can be smart for west-facing windows that catch the brutal late-afternoon Texas sun.

Installation by Lightwell Windows Fort Worth in Fort Worth

Here’s the thing about window warranties: they are only as good as the installation. ViewLux covers manufacturing defects, but if the window is installed out of level, out of plumb, or without proper flashing, the warranty is void and you are paying for the fix yourself. We have seen this happen in Fort Worth too many times, usually when a general contractor lets a framing crew set windows to save a day of labor.

Lightwell Windows Fort Worth installs the VLX 80 to AAMA 2400/2410 standards, which is the nationally recognized installation standard for windows in residential and light commercial buildings. Here’s what that means on your job. First, we inspect the rough opening before anything gets set. We check for rot, out-of-square framing, and existing water damage, because setting a new window into a bad opening just means we’ll be back in three years. Then we set the window level, plumb, and square, shimming where necessary so the frame is not twisted or racked.

Next comes the seal. We use AAMA 812 low-expansion foam sealant on every perimeter joint, which fills voids and creates an airtight, waterproof barrier without bowing the frame the way expanding spray foam can. We flash the exterior perimeter according to the product’s tested installation method, then run a final water test to confirm the opening drains properly. Cleanup happens the same day. The old windows get hauled off, and the only thing left behind is the new glass and a trim package that’s ready to paint or stain.

Fort Worth-specific note: our clay soil expands and contracts with moisture, and that movement puts real stress on window frames over time. A properly shimmed and sealed installation gives the window the tiny bit of tolerance it needs so the frame doesn’t bind or the glass doesn’t crack when the foundation shifts through a wet spring and a dry August. That’s the difference between a window that lasts 12 years and one that lasts 30.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Fort Worth

If you’re building or renovating in Fort Worth and want the largest fixed window your wall can handle, let’s get you a real number. We measure, we spec the glass, we install per AAMA standards, and we stand behind the work. Call (682) 900-6694 to schedule your free on-site measurement and project estimate. Whether it’s one picture window or a full wall of glass in a new build, we’ll give you a line-item quote with no surprises.

Written by the team at Lightwell Windows Fort Worth, serving Fort Worth and surrounding Tarrant County communities.
