VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Fort Worth, TX | Lightwell Windows Fort Worth

The VLX 150 Heavy-Duty Sliding Door is a large-span aluminum slider engineered for openings most standard patio doors can’t touch. We’re talking glass walls up to 24 feet wide, panels that glide on stainless hardware built for decades of daily use, and frame construction thick enough to hold laminated impact glass without flexing. For Fort Worth homeowners replacing a tired sliding door or architects designing modern builds in Monticello or Rivercrest, this door solves the tension between wanting huge expanses of glass and needing something that won’t warp in Texas heat. Lightwell Windows Fort Worth is an authorized ViewLux installation partner, which means you get the product at full warranty and an install crew that follows AAMA standards to the letter. Call (682) 900-6694 to talk specs or schedule a measurement.

Call (682) 900-6694

Product Overview – VLX 150 Heavy-Duty Sliding Door

The VLX 150 exists because standard residential sliders top out around 8 or 10 feet before the frame starts sagging. This series was designed from the start as a strength-first product: a 0.118-inch wall thickness on the aluminum profile and a 2.95-inch frame depth give the extrusion the rigidity to carry multiple sliding panels across openings that stretch to 24 feet. That’s the kind of span you see on lake houses in Eagle Mountain or contemporary ranch renovations in Arlington Heights, where a single wall of glass replaces what used to be three separate windows and a French door.

What separates the VLX 150 from budget aluminum sliders is what you can’t see: the stainless steel roller hardware is rated for heavy panel weights, so a 200-pound glass panel still opens with two fingers. The multi-track design means you can configure two, three, or four tracks to create wide clear openings when the panels stack, or fixed glass sections alongside operable panels. Buyers in Fort Worth choose this series when they want a door that behaves like a moving glass wall, not a patio door that fights you after year five.

We see this product specified most often in two scenarios: replacements where the homeowner wants to widen an existing opening to bring in more light, and new construction where the architect drew a 16-foot or 20-foot opening and standard sliding doors just can’t span it. In both cases, the VLX 150 gives Lightwell Windows Fort Worth a product we can stand behind for the long haul, because the engineering actually matches the span.

Technical Specifications

Here’s what the VLX 150 Heavy-Duty Sliding Door brings to the table, spec by spec. These numbers matter when you’re comparing products.

• Frame wall thickness: 0.118 inches, roughly 30% thicker than typical residential aluminum door extrusion.
• Profile depth: 2.95 inches, which gives the frame the structural spine for large spans.
• Maximum span: 24 feet wide across multiple tracks and panels, configurable to suit the opening.

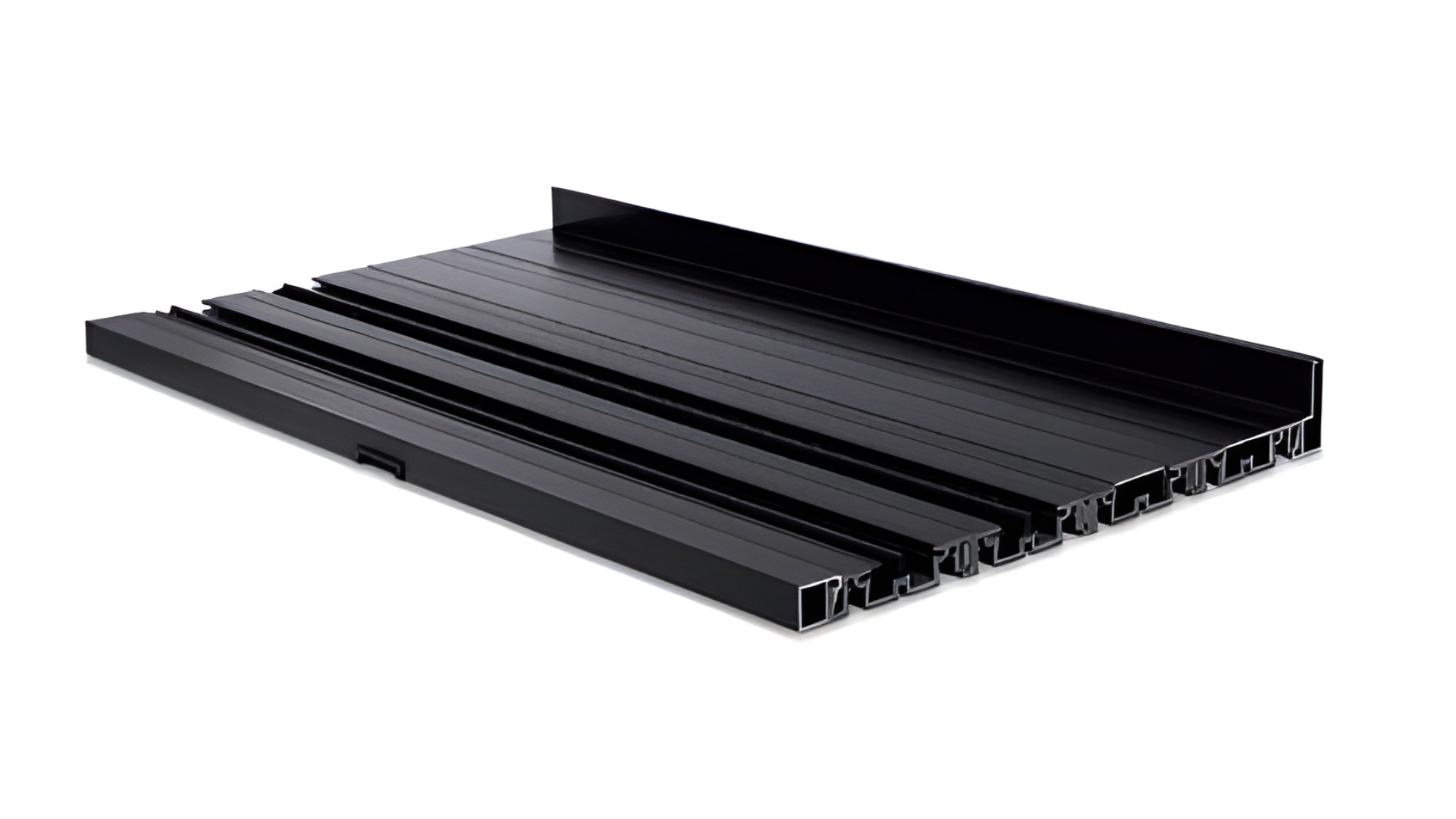

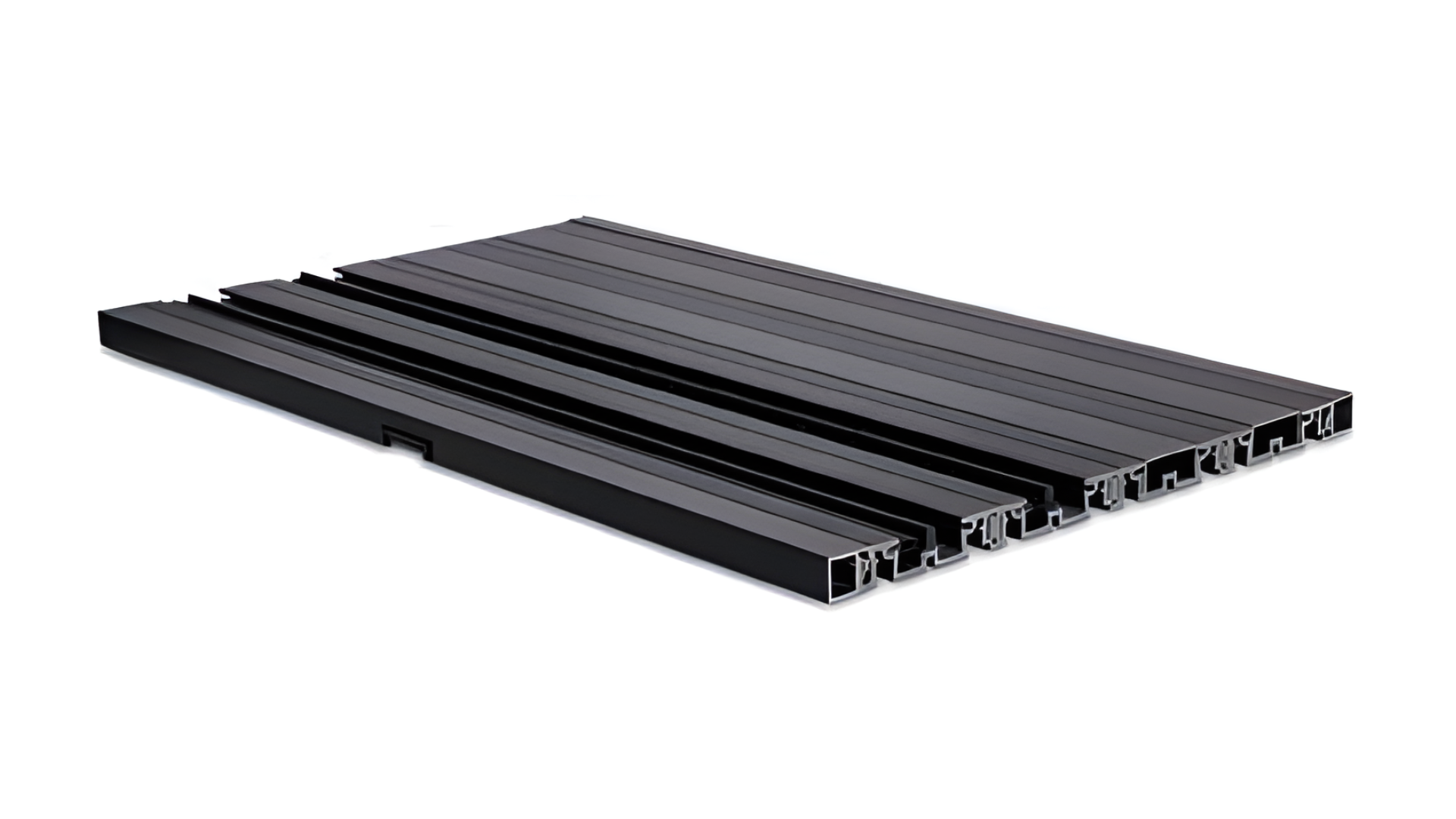

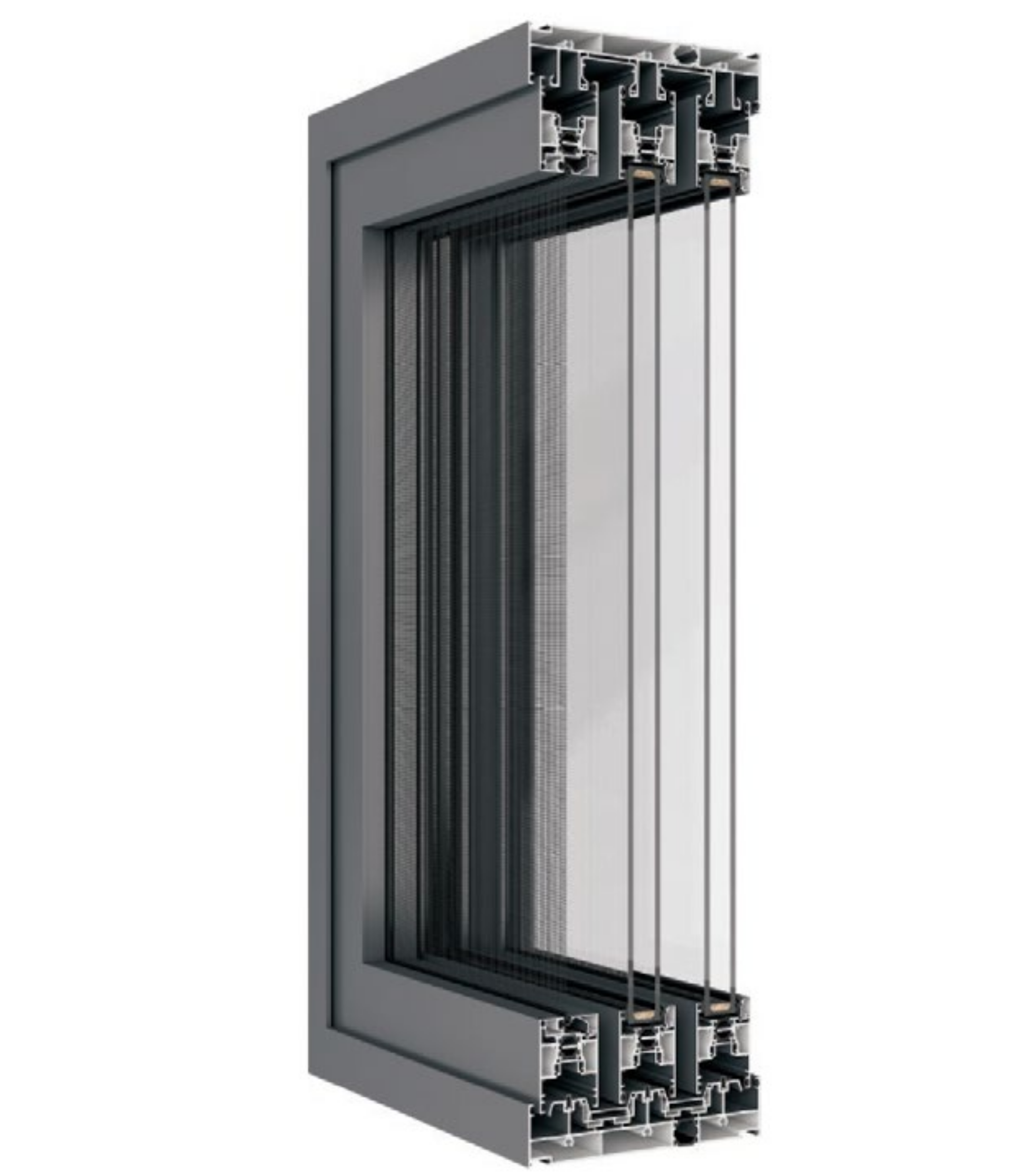

• Track configurations: 2-Track, 3-Track, and 4-Track layouts for stacking panels or mixed fixed and operable sections.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint, each with performance tradeoffs we walk through before ordering.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen that disappears into the frame, or a traditional sliding screen panel.
• Hardware: Stainless steel rollers and track assemblies, selected for corrosion resistance in North Texas humidity and heat cycles.
• Thermal performance: Thermal break technology built into the profile, with NFRC-rated energy performance data available by glass package.
• Standards compliance: Installed to AAMA 2400/2410, with AAMA 812 low-expansion foam sealant used on all perimeter joints.

Performance Features

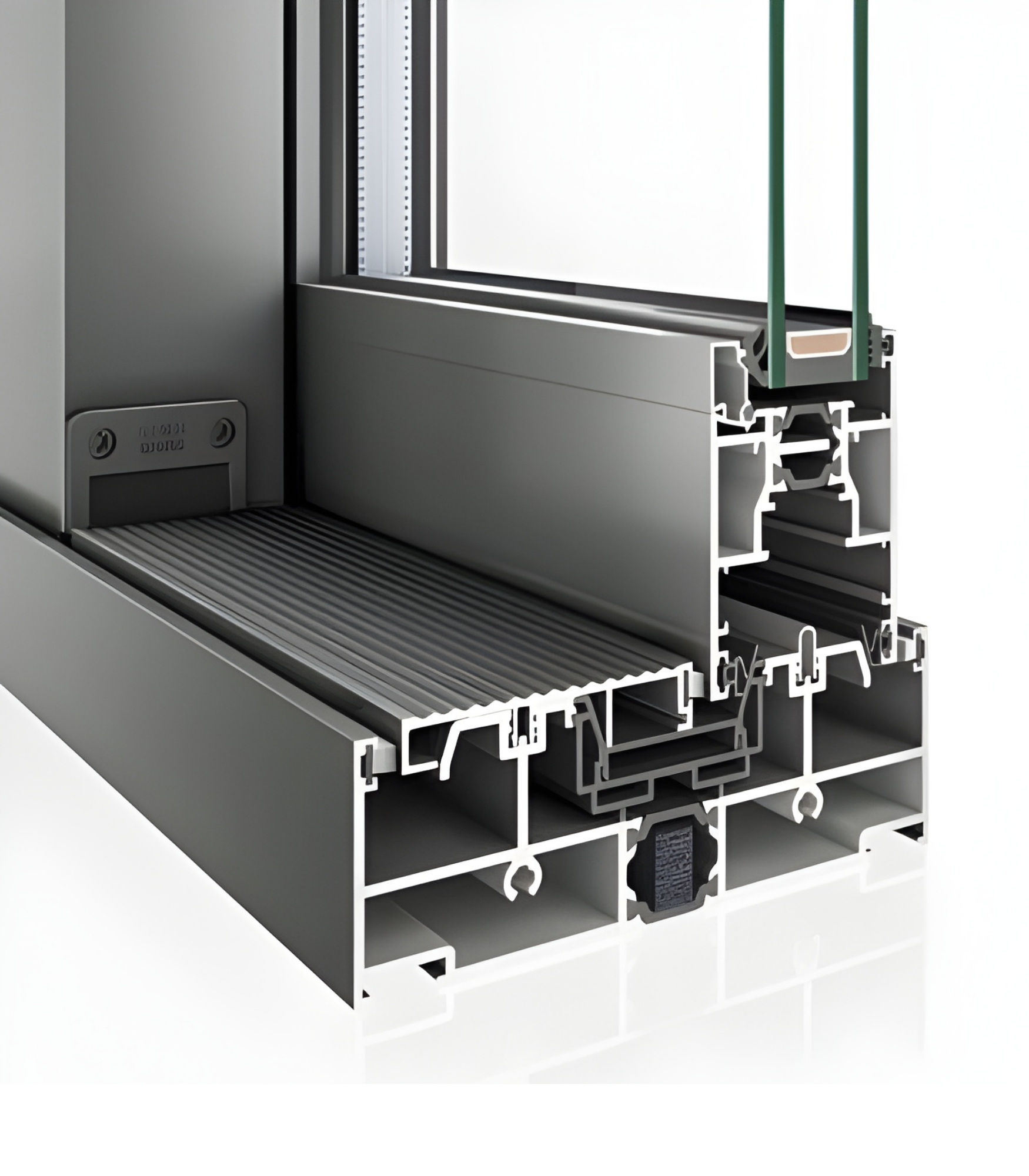

Thermal Efficiency – The VLX 150 profile uses a polyamide thermal break that separates the interior and exterior aluminum faces. Aluminum conducts heat aggressively, and without that break you’d feel the Fort Worth summer radiating through the frame. Combined with Low-E glass, the assembly earns NFRC ratings that hold up in Texas cooling seasons.

Acoustic Performance – Aluminum frames with solid construction and tight perimeter sealing reduce outside noise measurably. If you live near I-30, Camp Bowie traffic, or the Union Pacific rail line, laminated glass paired with this frame quiets the constant hum. The difference is most noticeable at night when the house settles.

Airtightness & Weather Seal – The frame design includes interlocking weather stripping at panel meeting points and along the track. We install every VLX 150 with AAMA 812 low-expansion foam around the entire perimeter before interior trim goes on. That seals the gap between the door frame and the rough opening, where most drafts actually originate.

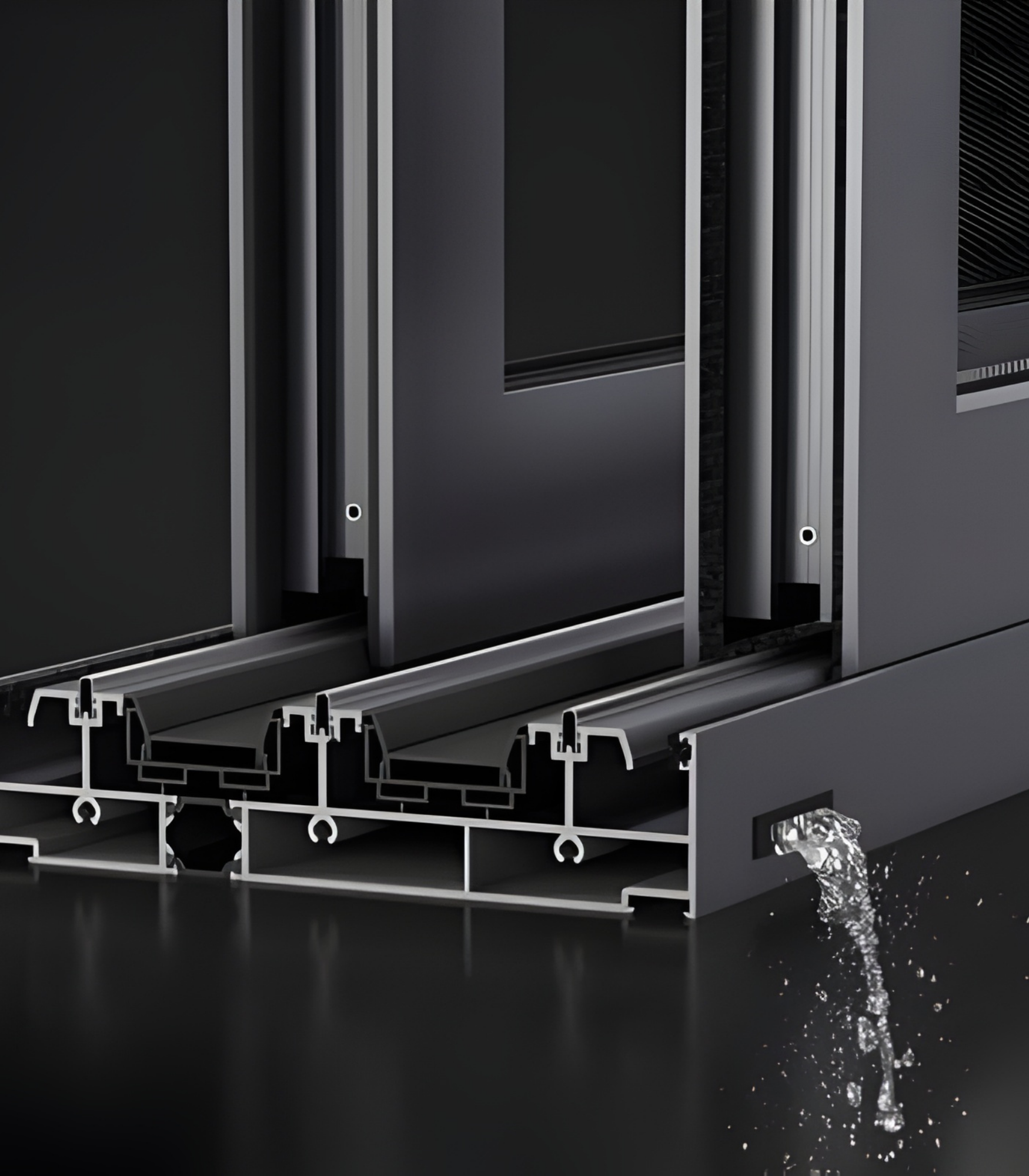

Waterproofing – Fort Worth gets sudden downpours, and a sliding door track is the most likely place for water to find its way in. The VLX 150 track system incorporates weep holes and drainage channels that route water out and away from the interior floor. When we set the door, the sill is sloped correctly and sealed so water never pools against the threshold.

Wind Resistance – North Texas gets straight-line winds and severe thunderstorm gusts that stress door assemblies. The 0.118-inch wall thickness and deep profile depth mean the VLX 150 holds its shape under wind load better than thinner aluminum sliders. For homes in Tarrant County’s wind zones, we specify the panel sizes and glass thickness to meet local code requirements.

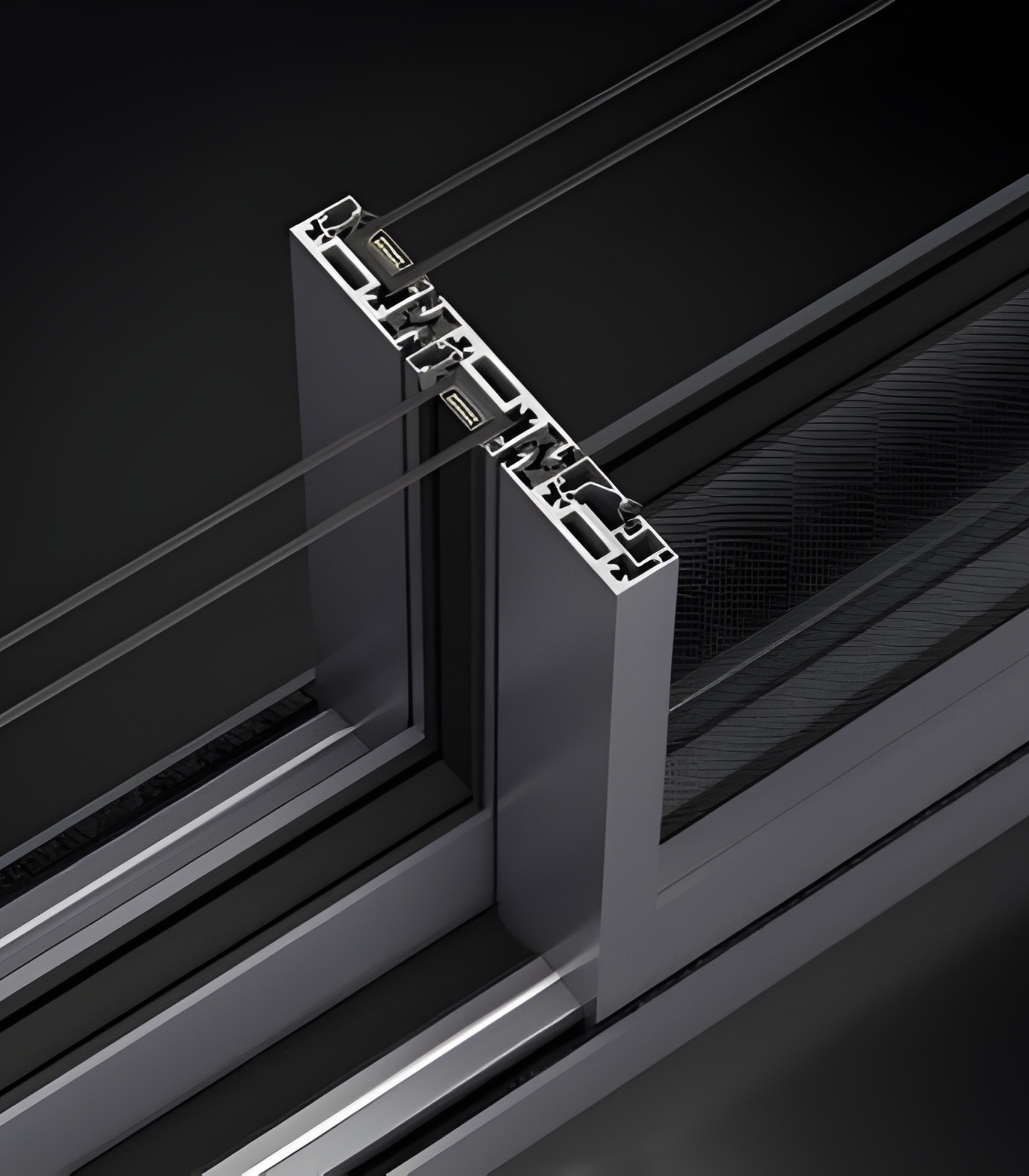

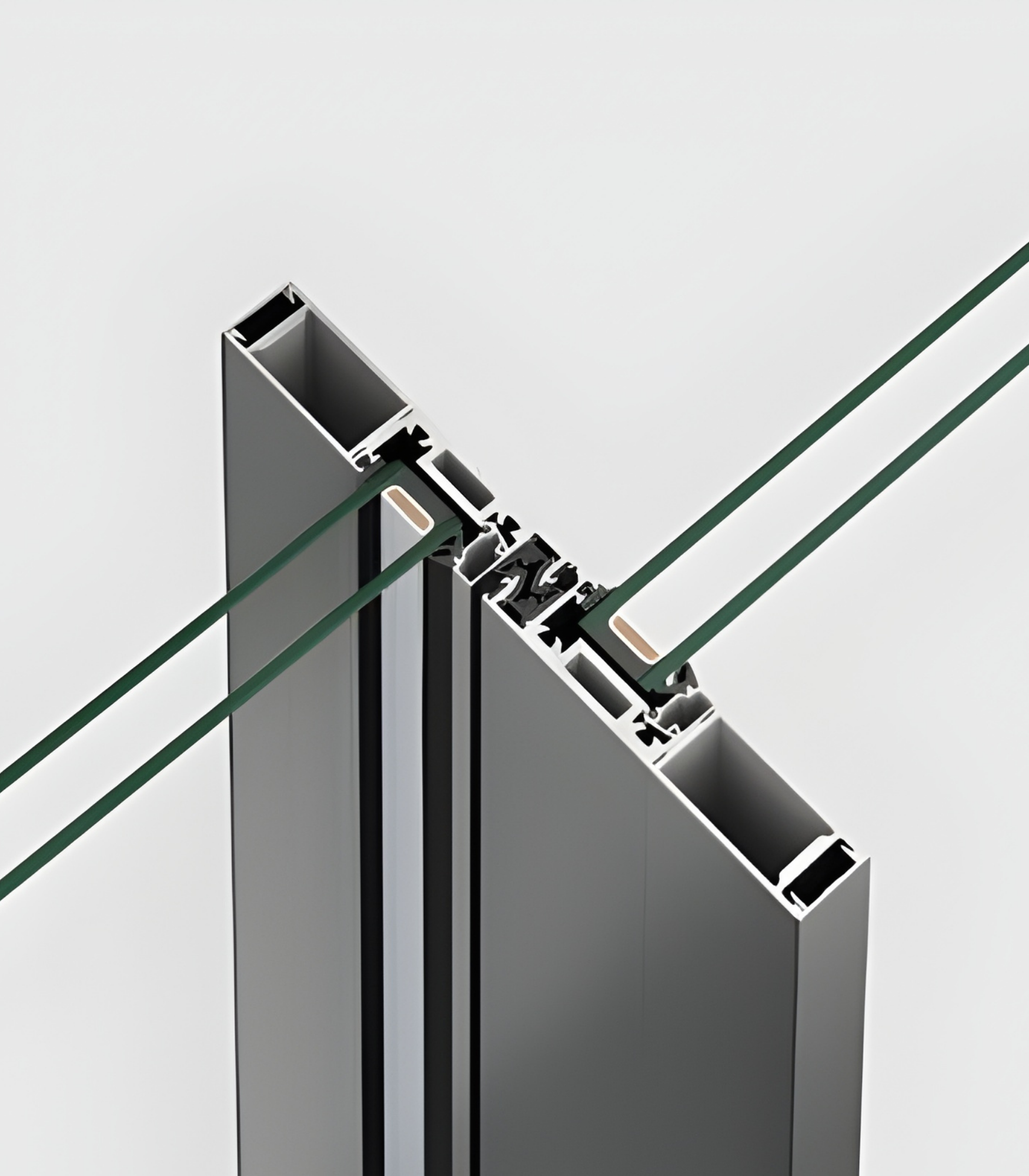

Security & Hardware – The stainless steel roller carriers and multi-point locking hardware are heavy. Panels don’t rattle in the track, the lock engages positively at the meeting stile, and an optional laminated glass upgrade turns the door into a serious barrier against forced entry. We recommend laminated for any ground-floor opening in Fort Worth.

Color & Glass Options

The VLX 150 comes in six finishes, and the right choice depends on your home’s architecture. Premium Black is the default for modern farmhouse and contemporary builds in Fort Worth; it frames the glass cleanly and hides track hardware. Pure White works on traditional brick homes where the door should blend into the wall rather than stand out. Anodized Silver has a raw aluminum look that suits industrial and mid-century ranch styles. Bronze and Champagne read warmer and pair well with earthy brick tones common in older Fort Worth neighborhoods like Berkeley Place or Ryan Place. Teak Wood is a wood-look finish for homes where the HOA or architectural review requires wood-toned fenestration, without the maintenance of actual wood.

On glass, Clear is the budget baseline, and Low-E is the sensible upgrade for Texas sun control, cutting solar heat gain without darkening the room. Tempered is code-required safety glass for doors, and we order it by default on every operable panel. Laminated adds impact resistance and sound dampening, and is what we recommend for ground-floor openings and storm-prone areas. Gray Tint and Black Tint give you privacy and glare control, with the tradeoff being a darker interior view.

Installation by Lightwell Windows Fort Worth in Fort Worth

Here’s the thing about a door this size: the product is only as good as the install. A 24-foot aluminum slider set even an eighth of an inch out of level will bind, leak, and void the manufacturer’s warranty within a year. We see it on replacements we pull out of Fort Worth homes all the time: doors installed by a general handyman, shimmed with scraps, sealed with whatever caulk was in the truck. The frame sags. The panels drag. Water finds the gap.

Lightwell Windows Fort Worth installs the VLX 150 differently. We start with a pre-installation inspection of the rough opening, checking that the header and subfloor are structurally sound before the door ever comes off the truck. We set the frame dead level, plumb, and square using laser levels, not a bubble stick. The frame is anchored per manufacturer specifications and AAMA 2400/2410 installation standards. Then we foam the entire perimeter with AAMA 812 low-expansion sealant, which seals the gap without bowing the frame. After the door is hung, panels are adjusted so the reveal lines are uniform and the rollers glide. We run a water test across the full sill before interior trim and cleanup.

Fort Worth’s freeze-thaw cycle and summer heat make the perimeter seal critical. Poorly sealed doors here show water staining within one season. We pull building permits when required and install to the code cycle your city or county is enforcing, which protects you as the homeowner and keeps the ViewLux warranty intact.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Fort Worth

If you’re pricing a large sliding door for a Fort Worth home, start with a measurement from the crew that will actually install it. We measure, quote the door and the install as one fixed number, and walk you through glass and finish options before you commit. Call (682) 900-6694 today to schedule your free on-site measurement and get a written line-item quote.

Written by the team at Lightwell Windows Fort Worth, serving Fort Worth and Tarrant County.
