Get your free estimateVLX 138 Panoramic Sliding Door in Fort Worth, TX | Lightwell Windows Fort Worth

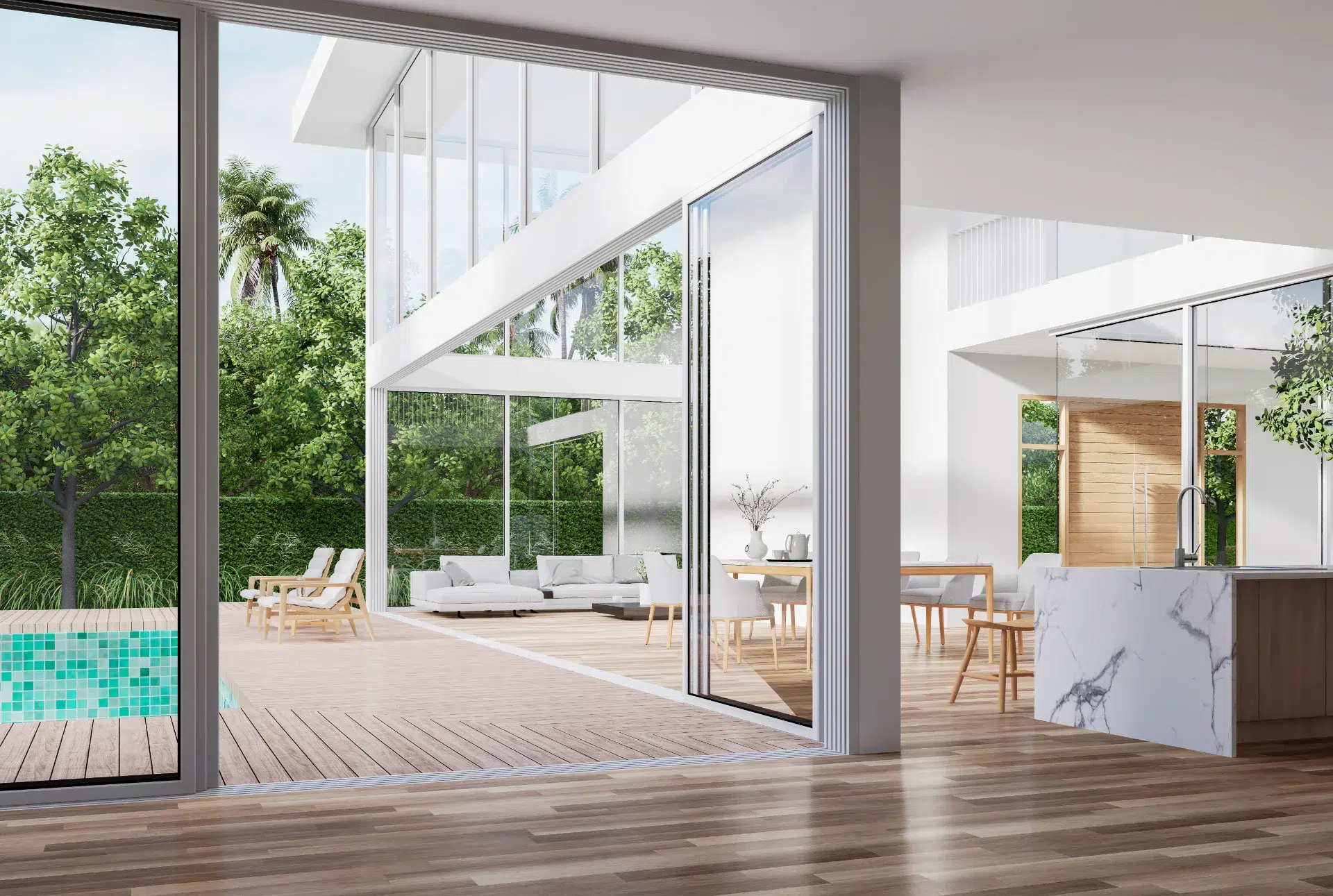

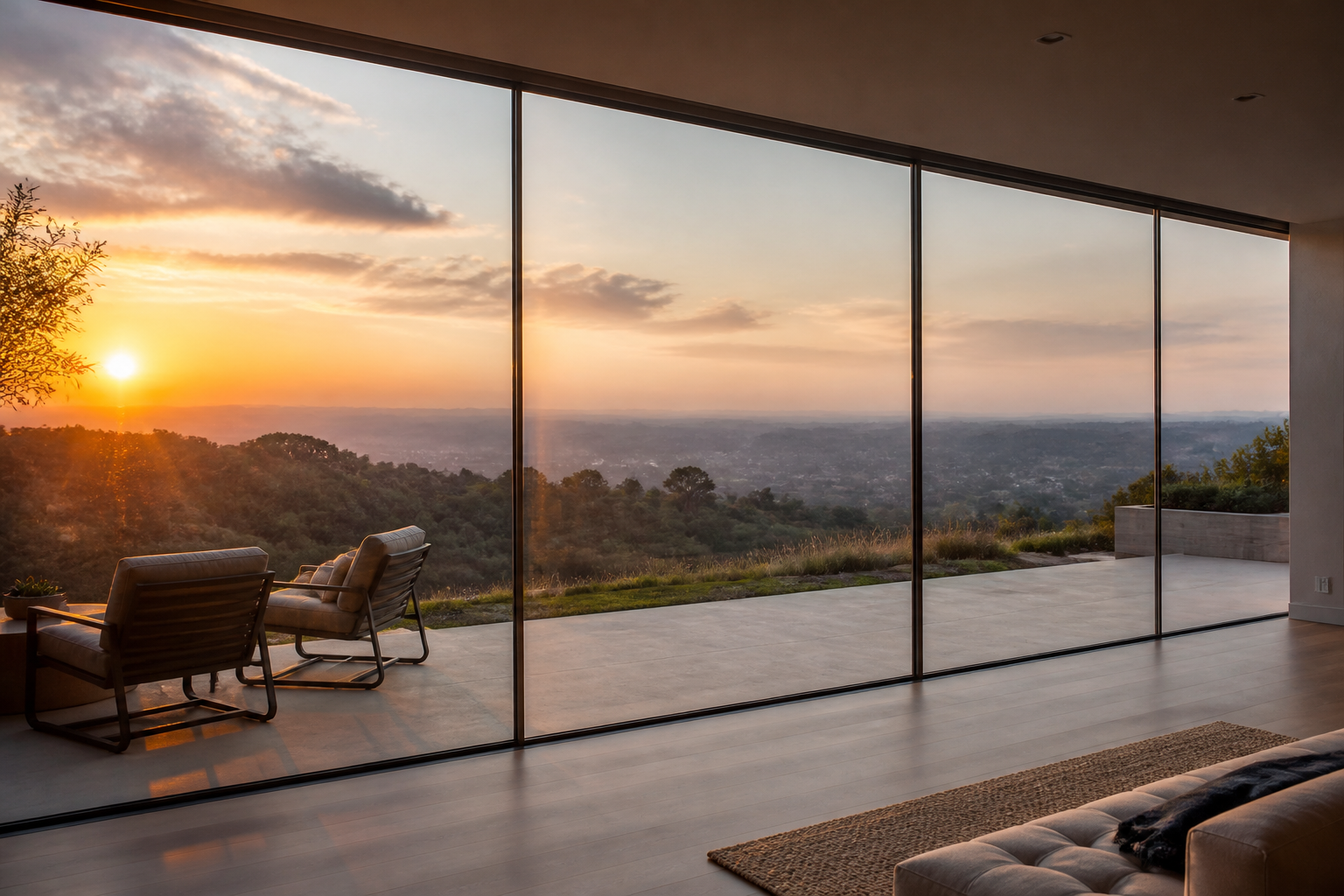

The VLX 138 Panoramic Sliding Door is what you put in a home when the view matters more than anything else. It’s a luxury large-span slider engineered to give you expansive, uninterrupted sightlines across your living space, your patio, and whatever landscape sits beyond it. We install this door throughout Fort Worth, and we see it most often in homes near the Trinity River, in Monticello, in Tanglewood, and in new builds out toward Walsh and Aledo. As an authorized ViewLux installation partner, Lightwell Windows Fort Worth supplies and installs the VLX 138 to factory spec, with a full perimeter seal and a level, plumb, square set. Call (682) 900-6694 to talk price, lead time, and what this door would cost in your home.
Product Overview – VLX 138 Panoramic Sliding Door
The VLX 138 is built around one idea: remove as much wall as possible and put glass in its place. The extrusion is 0.138 inches thick, which gives the frame real structural rigidity without turning the door into a heavy industrial object. The profile itself is 1.535 inches wide, so sightlines stay clean and minimal. When you stand in a room with a VLX 138 closed, you don’t see a door frame. You see glass. That’s the point of a panoramic slider.

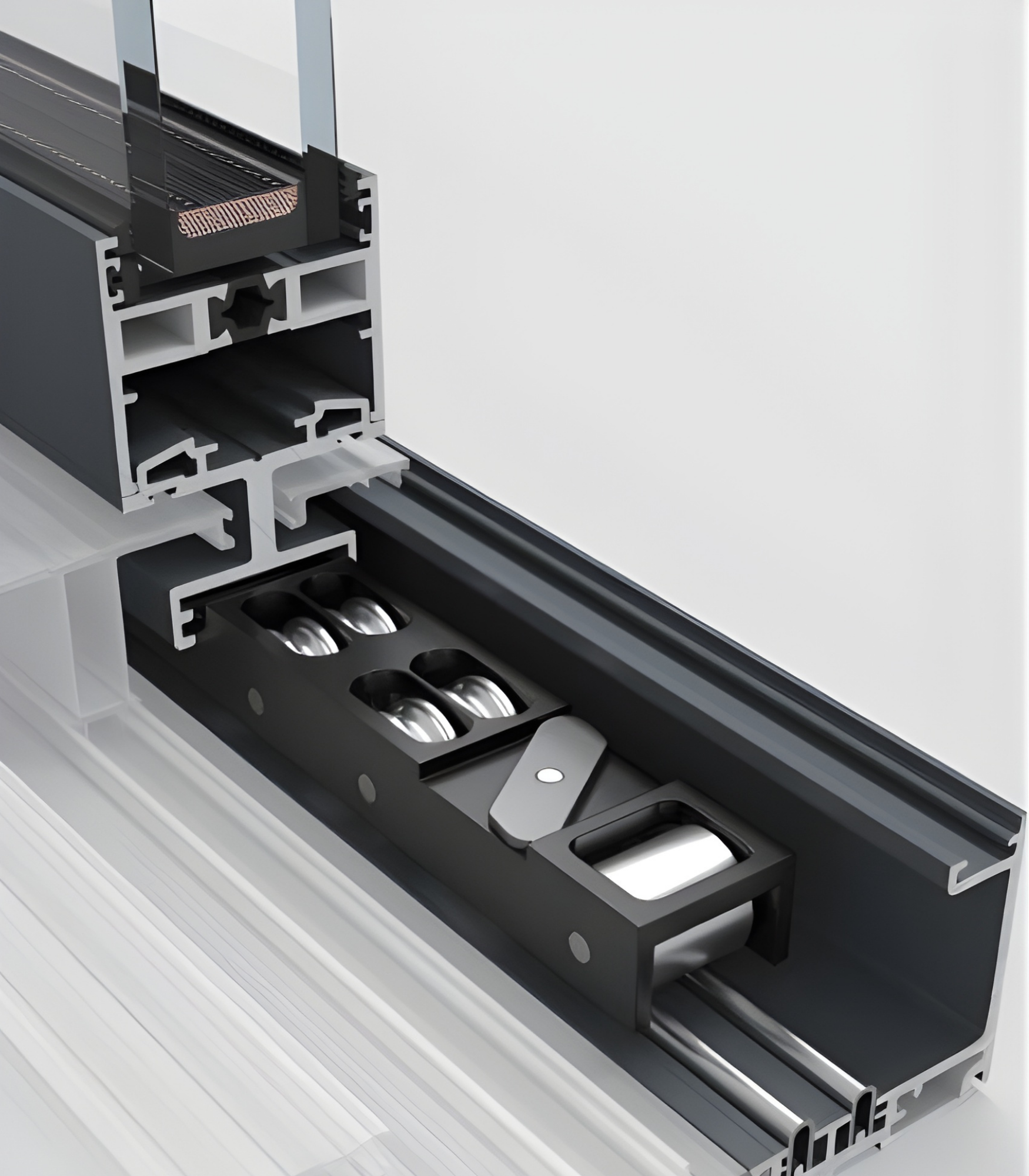

The glide is the second thing homeowners notice. The panels ride on stainless bearings, which means a panel spanning 12 or 15 feet still moves with one hand. No drag, no stick, no shoulder against the stile. In Fort Worth, where summer heat makes people want the house open to the patio at 7 a.m. and closed up tight by noon, that kind of effortless operation matters more than it sounds. People actually use these doors. That’s why we recommend them over cheaper multi-slide systems that bind after a season or two.
Architecturally, the VLX 138 fits modern builds, mid-century renos, and high-end traditional homes where the back wall is being rethought entirely. It works in new construction off Heritage Trace Parkway, in remodeled ranch houses in Ridglea Hills, and in custom builds around Eagle Mountain Lake. The maximum span is up to 36 feet wide, so it can replace an entire back wall when engineered correctly.
Styles & brands we work with
Technical Specifications
- Wall thickness: 0.138-inch aluminum extrusion. This is the structural core of the door, thicker than most standard residential sliders, which is what allows the long spans.
- Profile width: 1.535 inches. Slim sightlines, but enough material to hold laminated or impact-rated glass without deflection.
- Maximum span: Up to 36 feet wide, depending on panel count and engineering.

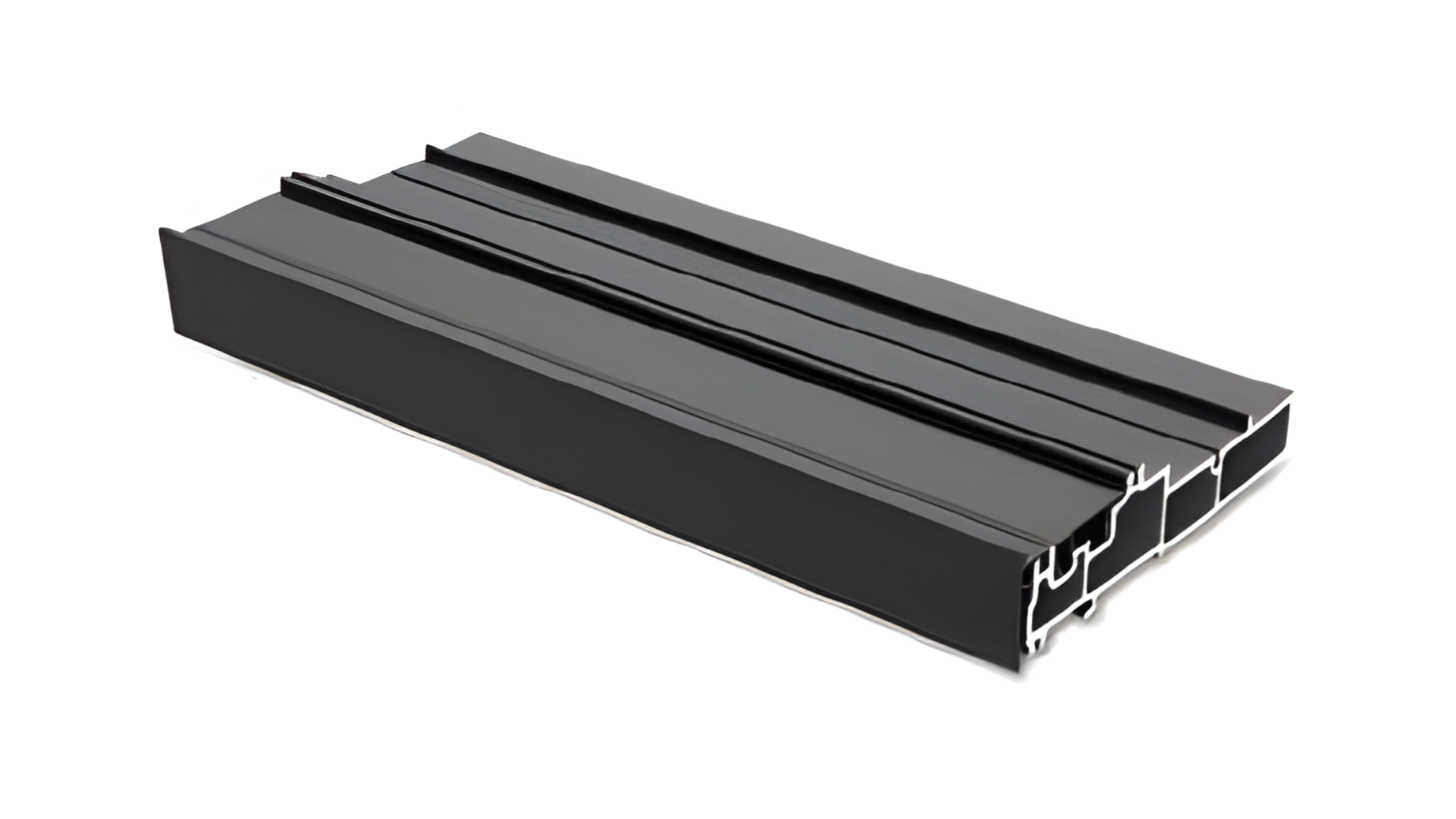

- Track configurations: 2-track, 3-track, and 4-track, which changes how many panels stack and how much the opening clears.
- Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
- Screen options: Retractable screen or sliding screen.
- Sill options: Flush sill, low-profile sill, or recessed sill. Your choice depends on threshold clearance, drainage, and interior flooring.
Performance Features

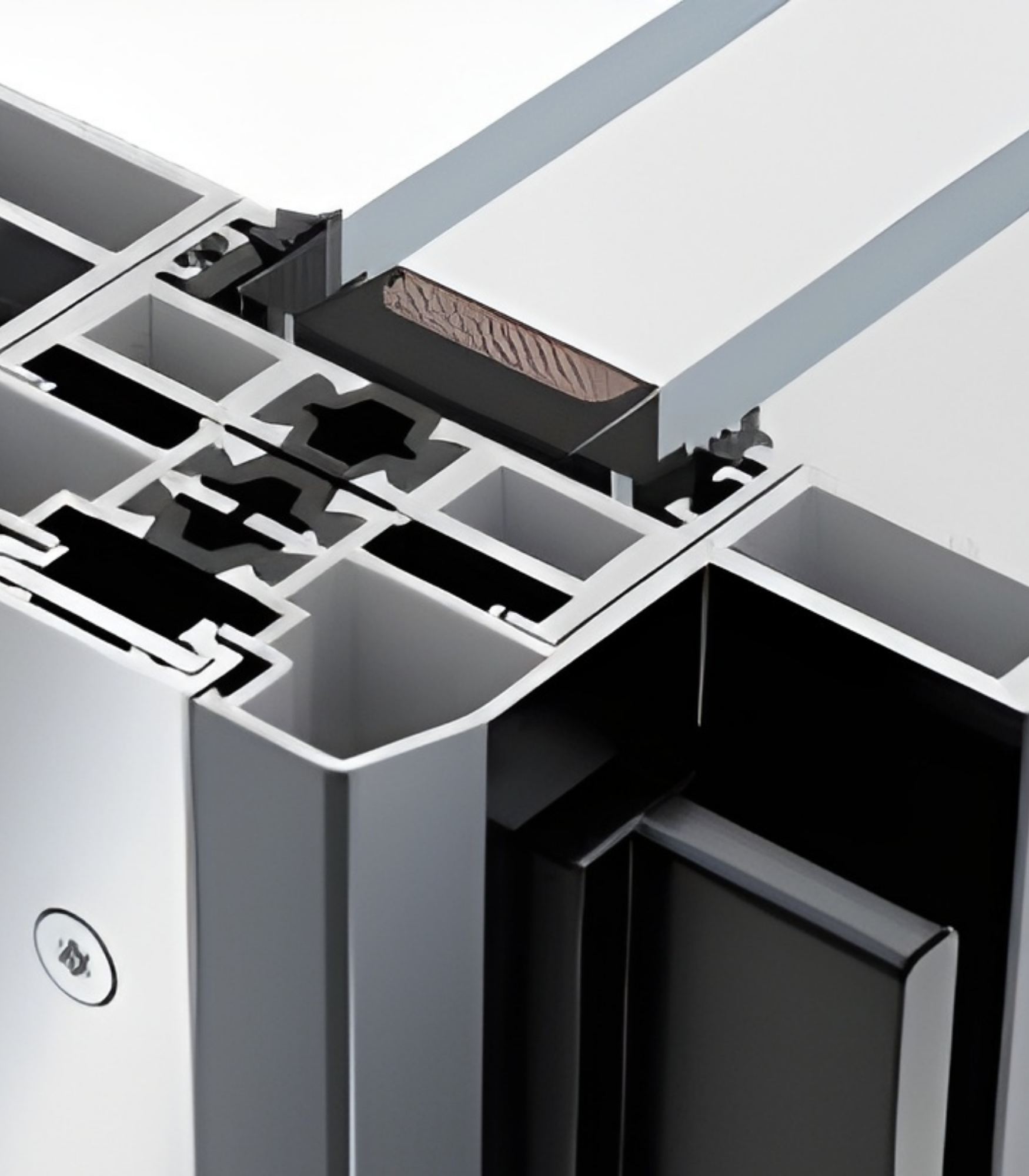

Thermal Efficiency – The VLX 138 uses thermal break technology in the aluminum frame. That break stops heat from conducting through the metal from outside to inside, which matters in Fort Worth where July and August run 100 degrees for weeks. We pair the frame with Low-E glass and the door earns NFRC-rated energy performance numbers that actually hold up.
Acoustic Performance – If you live near I-30, Chisholm Trail Parkway, or the rail line through the Near Southside, noise is part of your daily life. The VLX 138’s thick extrusion, tight corner joinery, and laminated glass option cut transmission noticeably. A 36-foot glass wall won’t make a home silent, but it’s a far cry from a builder-grade slider from 2005.

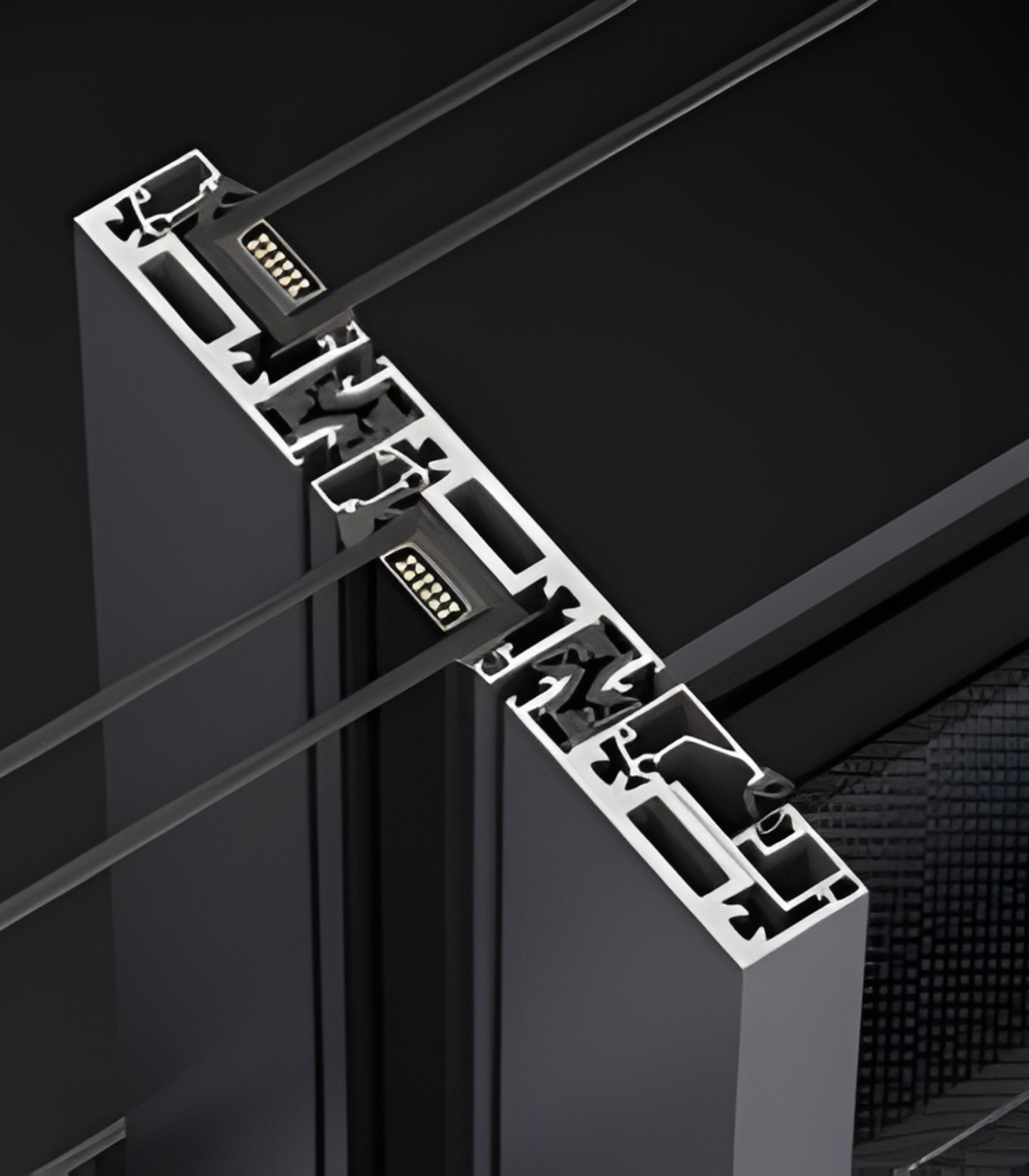

Airtightness & Weather Seal – Every perimeter joint on a VLX 138 install we do in Fort Worth gets AAMA 812 compliant low-expansion foam sealant. That means no air leaks at the frame-to-wall transition. The door itself uses compression gaskets at the meeting stiles and top rail, so a closed panel stays closed, not just latched but sealed.

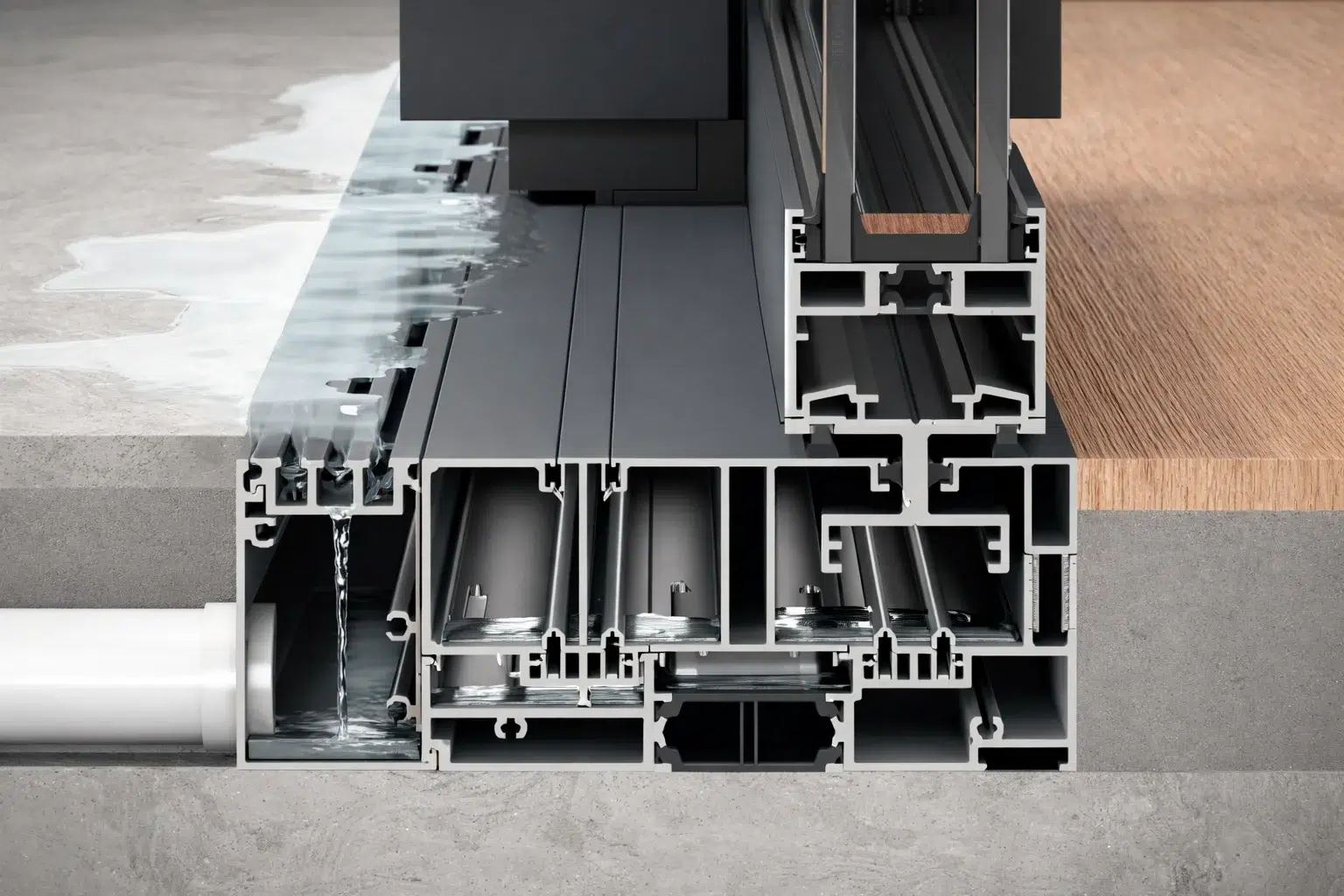

Waterproofing – Panoramic sliders sit at the worst possible place for a house: where wall meets floor meets outside. We install per AAMA 2400/2410, with sill flashing, back dam, and drainage weep system. Recessed and low-profile sills both drain correctly when detailed right. We’ve torn out enough badly flashed Fort Worth doors to know what happens when this step gets skipped.
Wind Resistance – Spring storms in North Texas bring straight-line winds that can hit 70 or 80 mph. The VLX 138 is wind-load rated for local requirements, and we spec the glass thickness and panel count to handle your home’s exposure. If your lot sits open to the west, you’ll want different glass than a house tucked into a canopy of post oaks.

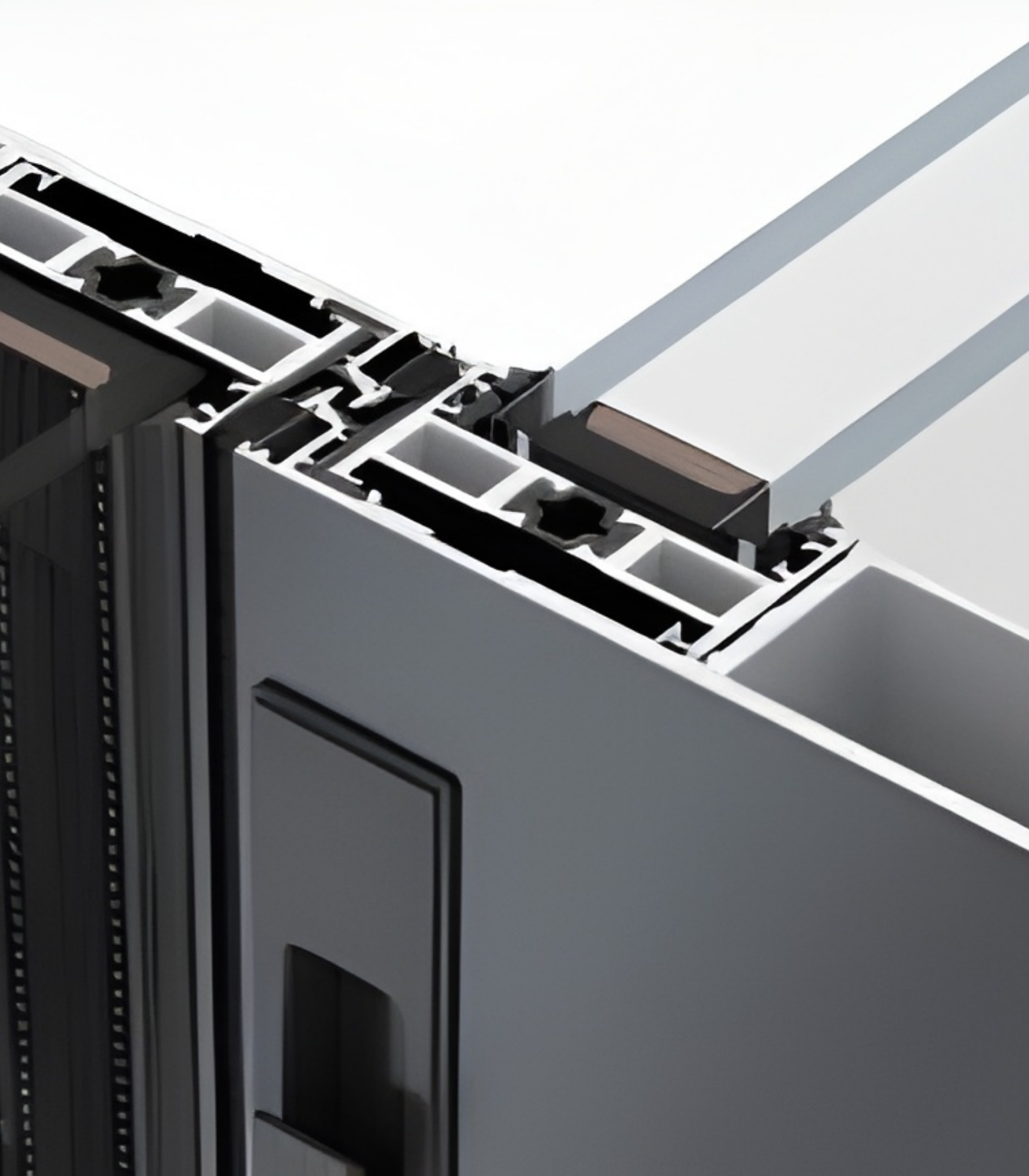

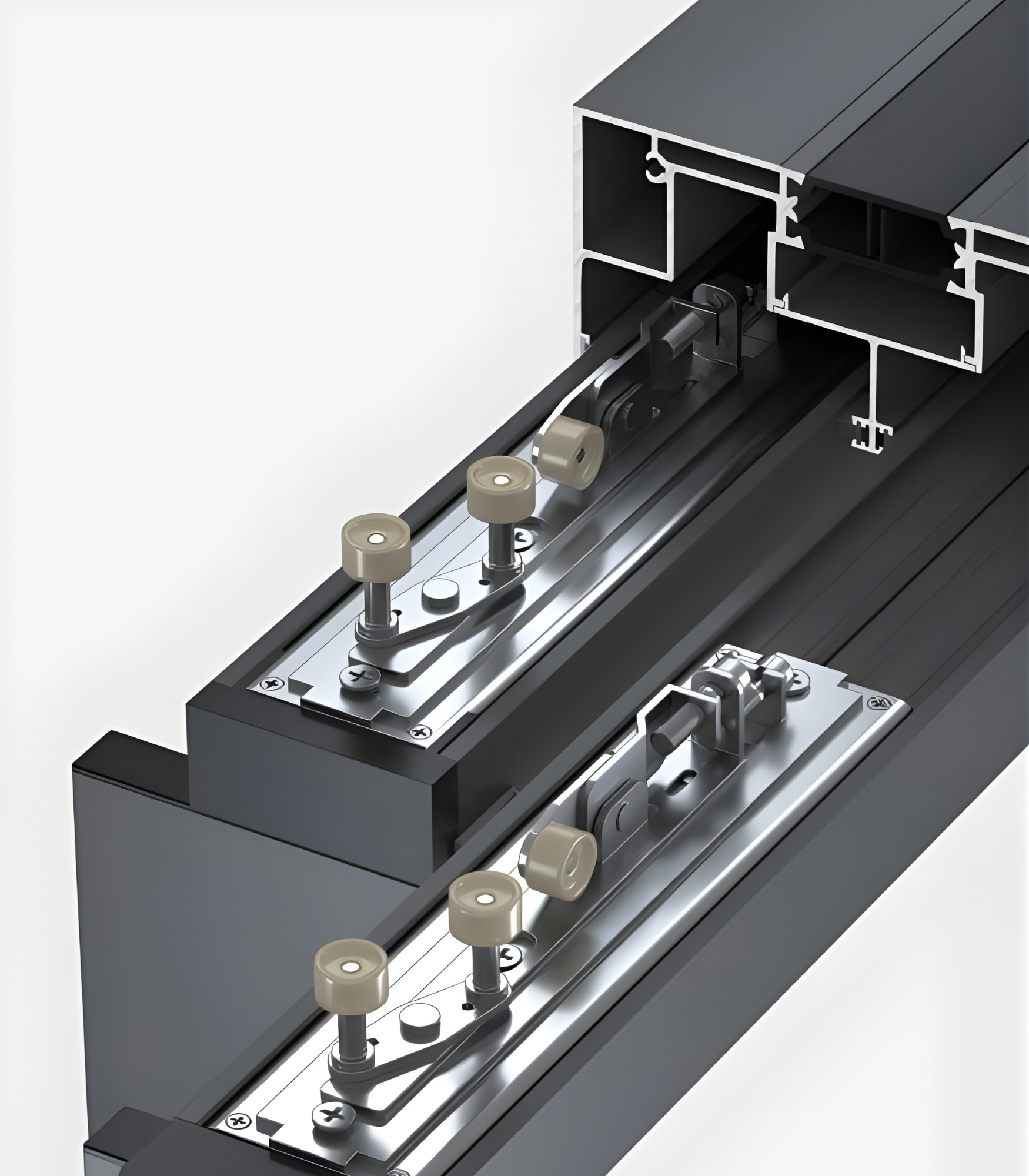

Security & Hardware – Multi-point locking hardware, not a single latch. The VLX 138 runs a locking rod through the full height of the panel. You can also spec impact-resistant laminated glass, which we recommend for ground-level openings and anyone concerned about forced entry or storm debris.
See the difference
Before
After
Before
AfterColor & Glass Options
The six finish options give you real design room. Premium Black is the most popular finish on modern Fort Worth builds, especially in neighborhoods like Riverside and Crestwood where black window frames became the standard look about five years ago. Pure White suits traditional or farmhouse-style homes, and it’s common in new construction along the Alliance corridor. Anodized Silver reads commercial-modern and looks sharp on contemporary boxes. Bronze works on brick exteriors, especially older brick from the 1960s and 70s. Champagne is a warm metallic that bridges modern and transitional. Teak Wood is a wood-look finish that gives aluminum durability with the warmth of timber, popular in homes trying to soften an otherwise hard modern exterior.
Glass depends on what the door faces. Clear if you want maximum light and the view is the point. Low-E on any west- or south-facing Fort Worth wall, because the summer sun will cook an unprotected opening. Frosted and Obscure give privacy where a neighbor sits close or when the door opens to a side yard. Black Tint and Gray Tint cut glare and heat while keeping the view visible, and they give the exterior a darker, sleeker reflection.
Installation by Lightwell Windows Fort Worth in Fort Worth
Here’s what matters about installing a panoramic sliding door correctly: the opening has to be straight. Not close. Not within tolerance. Straight. A 20-foot header sitting 3/8 of an inch out of level will make the door bind, the panels drift, and the locks stop lining up within a year. We set every VLX 138 level, plumb, and square before fastening anything. That’s not a slogan. That’s the difference between a door that slides for 20 years and one that fights you from day one.
Our process starts with a pre-installation inspection. We measure the rough opening, check the header and subfloor, and verify the structural condition of the surrounding wall, especially in older Fort Worth homes where framing has settled or shifted. Then we install per AAMA 2400/2410, the national standard for installation of windows and doors in exterior walls. Every perimeter joint gets AAMA 812 low-expansion foam sealant, which seals the frame-to-wall gap without bowing the extrusion. We flash the sill, set the drainage plane, and water-test the completed opening before we call the job done.
One thing we tell every customer: use a qualified installer. The ViewLux warranty covers manufacturer defects, not installation errors. A door installed out of square or without proper flashing will fail, and that failure is not covered. As an authorized ViewLux partner in Fort Worth, Lightwell Windows Fort Worth installs to spec, which keeps the warranty intact and the door performing.
Frequently Asked Questions – VLX 138 Panoramic Sliding Door
Lead time on a VLX 138 typically runs 6 to 10 weeks from order to delivery at our Fort Worth shop, depending on glass type, finish, and panel configuration. Custom finishes and oversized panels can push longer. Call (682) 900-6694 and we’ll give you a current lead time for your exact build.
Possibly. The VLX 138 with Low-E glass and thermally broken frame meets or exceeds the NFRC-rated performance thresholds required for federal energy efficient home improvement credits. The specific credit depends on the glass package you choose and the final U-factor and solar heat gain numbers. We can pull the exact NFRC data for your configuration and tell you what applies before you order. Call (682) 900-6694 and ask us to run the numbers.
The VLX 138 carries a manufacturer warranty from ViewLux on the frame and hardware, and the glass carries its own coverage depending on the glass package. The key is that the warranty requires professional installation per AAMA standards. We install every door to those standards, so your coverage stays intact. Call (682) 900-6694 and we’ll walk you through the exact terms for your spec.
Yes. The VLX 138 is built to order, not cut from a stock size chart. You specify height, total width, panel count, and track configuration. Up to 36 feet wide is possible with the right engineering. We’ll measure your opening in Fort Worth and work with ViewLux on a layout that fits your space and your budget. Schedule a site visit at (682) 900-6694.
Wash them. Mild soap and water twice a year, and clean the track with a vacuum or brush to keep the stainless bearings free of grit. That’s most of it. Fort Worth dust and pollen will build up in the bottom track, and that’s the main thing that makes a slider feel rough over time. The aluminum itself is powder-coated, so it doesn’t need painting or sealing. Call (682) 900-6694 if your door ever stops gliding the way it did on day one.
Get a Quote – VLX 138 Panoramic Sliding Door in Fort Worth
If you’re planning a panoramic sliding door in Fort Worth, start with a real quote. We’ll come out, measure your opening, discuss glass options, and give you a written number that includes the door, the install, and all the flashing and sealing work. No change orders down the line. Call (682) 900-6694 to schedule your free on-site measurement and get the VLX 138 priced for your home.
Written by the team at Lightwell Windows Fort Worth, serving Fort Worth, TX and surrounding communities as an authorized ViewLux installation partner.
