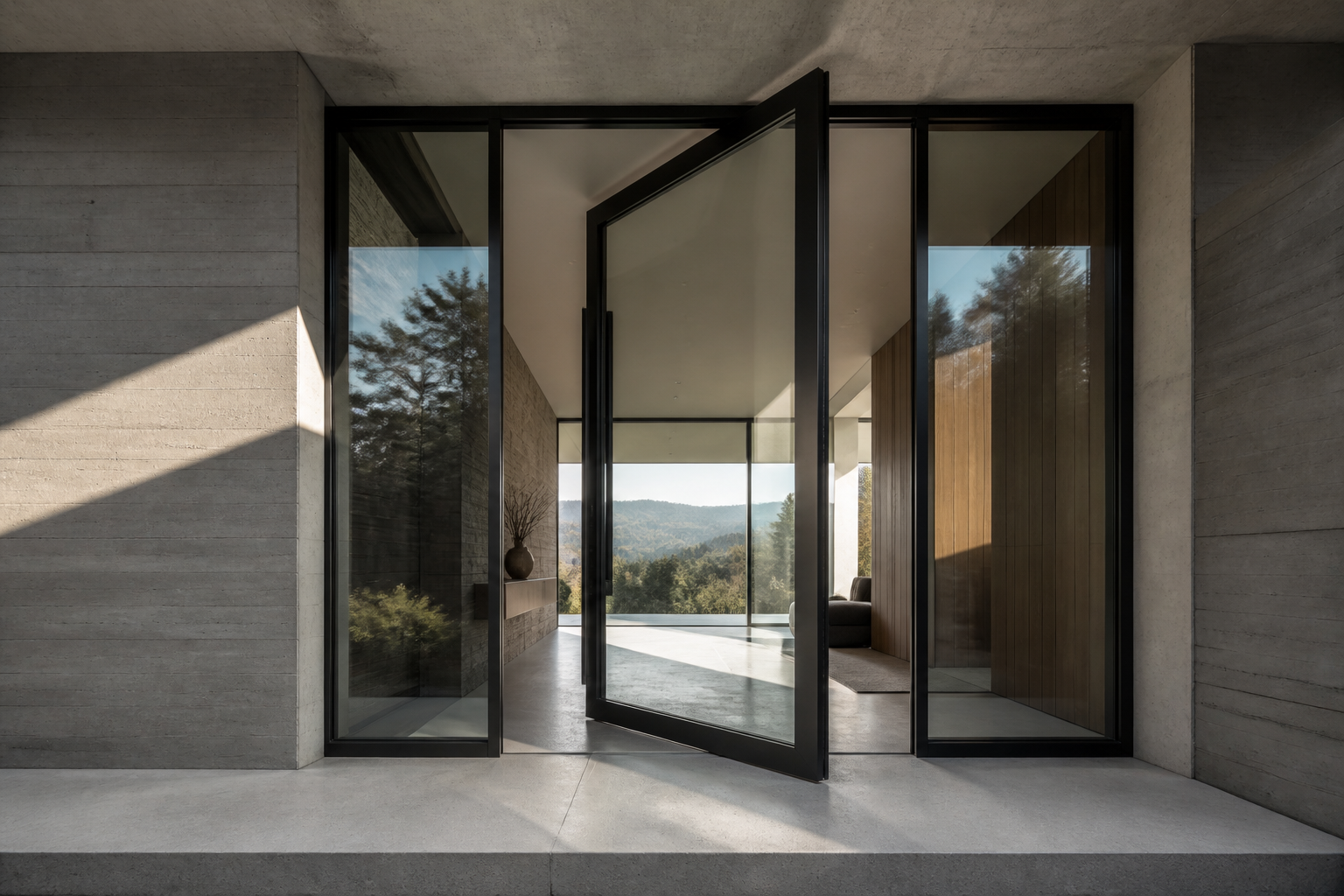

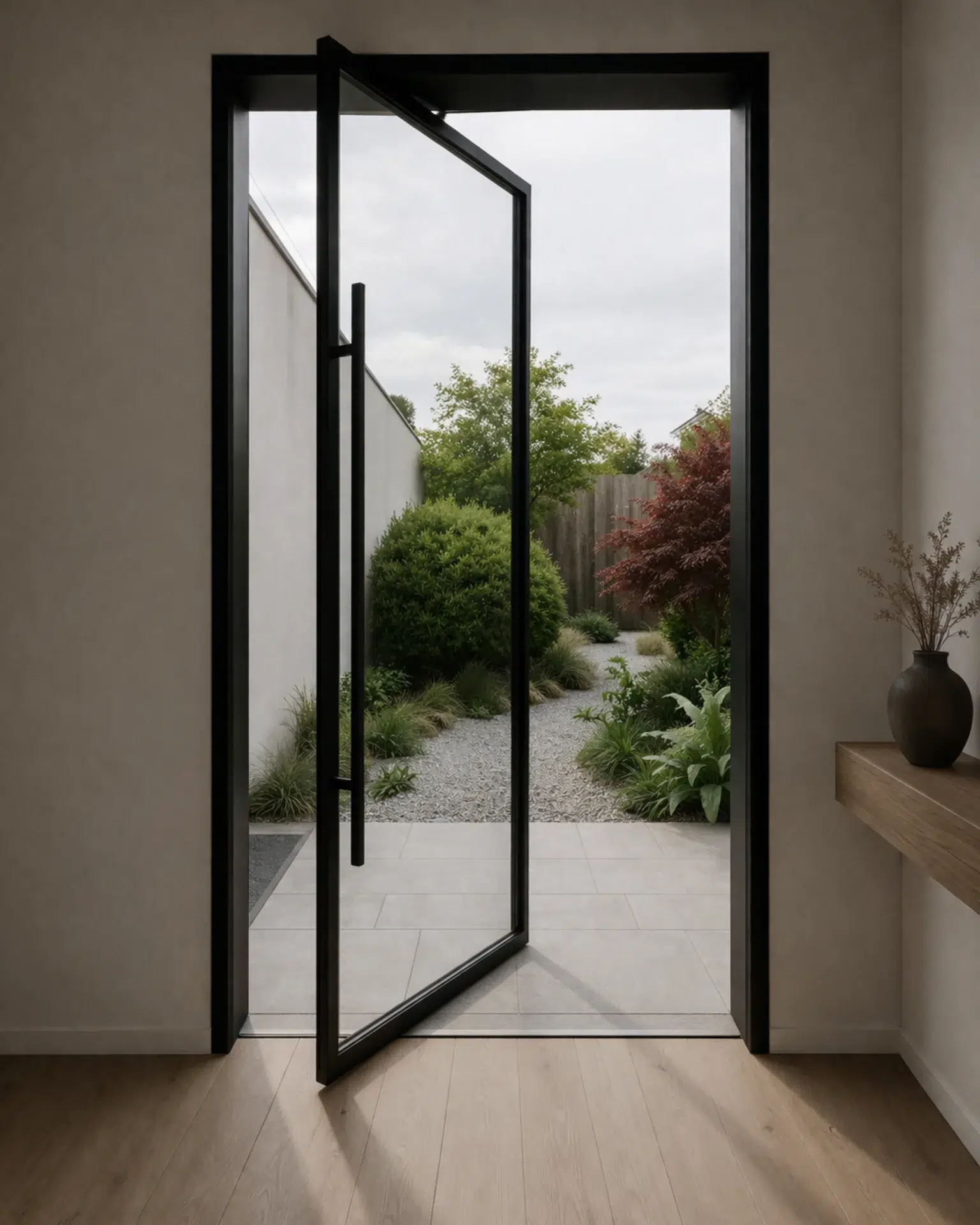

The VLX 100 Pivot Door is a full-height architectural entry door that turns on a center vertical axis instead of traditional side hinges. It carries oversized glass panels in a heavy-duty aluminum frame, creating a clean, modern entry statement that standard hinged doors can’t match. Lightwell Windows Fort Worth is an authorized installation partner for ViewLux, the manufacturer behind the VLX 100 series, which means you get factory-backed product knowledge plus local installation accountability under one roof. We have installed these doors across Fort Worth, from Tanglewood remodels to new builds in Walsh and Harwood. Call (682) 900-6694 to discuss your project or schedule a free on-site measurement.

Call (682) 900-6694

Product Overview – VLX 100 Pivot Door

The VLX 100 exists because some entries deserve more than a functional swing. A pivot door rotates around a point set back from the frame edge, which shifts the visual weight away from the corner and lets the door float in the opening. That engineering choice matters when you are working with a 60-inch-wide slab: a traditional hinge setup at that scale puts enormous stress on frame corners and sags over time. The pivot mechanism distributes that load differently, and the VLX 100’s extruded aluminum profile is built for exactly that kind of long-term performance.

This is the door Fort Worth architects and custom builders specify when the entry is part of the design conversation. You will see VLX 100 installations on contemporary homes in Rivercrest, on Mediterranean-inspired builds in Mira Vista, and on ranch-style rehabs along the Chisholm Trail corridor where owners want a single dramatic focal point at the front entry. The door works because the aluminum frame stays straight through Fort Worth’s temperature swings, which we all know can go from 25 degrees to 95 degrees in the same week. Thermal expansion is real, and the VLX 100’s engineering accounts for it.

The glass-to-frame ratio is intentionally aggressive. Minimal sightlines, maximum glass. For homeowners who want natural light pulling all the way to the front door, this series delivers something a wood slab door with two sidelights cannot. And because it is aluminum with a factory-applied finish, you are not looking at the refinishing schedule a wood or fiberglass door demands in the Texas sun.

Technical Specifications

Here are the numbers that define the VLX 100. The frame is built from extruded aluminum with a wall thickness of 0.098 inches, which is a step above the lightweight profiles you find on standard patio doors. That thickness is what lets the door carry oversized glass without flexing.

The maximum span is worth noting: a 60-by-120-inch slab is a true architectural statement. But not every opening needs maximum size, and the VLX 100 scales down cleanly for standard entry widths. Ask us what panel size makes sense for your elevation and how it affects the glass weight and hinge package.

Performance Features

Thermal Efficiency – The VLX 100 frame carries a polyamide thermal break that separates the interior and exterior aluminum faces. That break interrupts the conductive path that would otherwise let Fort Worth summer heat radiate straight through the frame. Combined with Low-E glass, the door’s NFRC-rated performance keeps your entry from becoming a thermal weak point.

Acoustic Performance – Oversized pivot doors have a lot of surface area, which makes glass selection the primary lever for sound control. Laminated glass has a plastic interlayer that measurably cuts sound transmission, and it is a practical upgrade for Fort Worth homes near I-30, Loop 820, or Chisholm Trail Parkway where road noise is a daily reality.

Airtightness & Weather Seal – Each VLX 100 we install in the Fort Worth area gets a continuous perimeter weather seal system plus AAMA 812 low-expansion foam on every perimeter joint. That foam application is not optional in our process; it is the standard that keeps conditioned air inside during July and outside during February, and it prevents condensation from forming in the frame cavity.

Waterproofing – Pivot doors demand meticulous flashing because the pivot point at top and bottom creates an intersection where water can find a path if the installation is sloppy. We follow AAMA 2400/2410 installation guidelines, which govern exactly how the rough opening gets prepared, flashed, and sealed before the door ever goes in. Fort Worth gets intense spring storms, and a properly installed VLX 100 sheds that water without leaking.

Wind Resistance – The VLX 100 is wind-load rated for the climate conditions we deal with in North Texas, including the straight-line wind events that roll through Tarrant County every spring. The aluminum extrusion’s wall thickness and the pivot anchoring system work together so the slab stays true and operational even after years of storm cycling.

Security & Hardware – The pivot mechanism itself functions as a built-in security feature: the door has no exposed side hinges to attack, and the center-axis geometry resists forced entry methods designed for standard hinged doors. Tempered glass meets safety glazing requirements, and for clients who want an additional layer, the laminated glass option holds together under impact rather than shattering.

Color & Glass Options

ViewLux gives the VLX 100 six factory finishes, and in our experience across Fort Worth, different neighborhoods gravitate toward different palettes. Premium Black reads sharply on modern farmhouse and contemporary builds; it is the most requested finish we quote in north Fort Worth. Pure White suits the transitional and Mediterranean-influenced homes common in areas like Overton Woods. Anodized Silver has a raw, metallic quality that works well with commercial-inspired residential designs and true modern minimalism. Bronze brings warmth and hides dust, which is practical in the drier parts of Parker County. Champagne is a softer metallic that pairs beautifully with limestone and tan brick, both of which are everywhere in Fort Worth. Teak Wood is a printed aluminum finish that mimics the grain of natural teak without the maintenance, and we have seen it work particularly well on mid-century ranch entries where owners want warmth without giving up aluminum’s lifespan.

Glass selection follows the same logic. Clear glass maximizes the view and the indoor-outdoor connection. Frosted and obscure glass give you privacy while keeping the light; obscure is the stronger privacy choice for front entries on smaller lots where you’re close to the street. Low-E glass is a coating, not a look, and it is worth adding regardless of your visible glass choice. Tempered glass is safety glazing, required by code in entry doors, so it is the default. Laminated glass builds on tempered with a sound-dampening, impact-resistant interlayer, and for Fort Worth storm season, that is the upgrade we talk about most often with clients.

Installation by Lightwell Windows Fort Worth in Fort Worth

A pivot door is only as good as its installation. That is not a marketing line; it is the reality of the hardware. A VLX 100 that is set a quarter-inch out of level will have a blade that drifts or binds, and a frame that is not shimmed square will put uneven stress on the pivot mechanism and shorten its life. Those failures typically are not covered under the manufacturer warranty, because the door itself did not fail. The installation did.

Our installation process in the Fort Worth area starts with a pre-installation inspection of the rough opening. We verify dimensions, check the subfloor for level, and confirm the header can carry the load. We also check that the site condition matches what was ordered, because an authorized partner should catch discrepancies before the door comes off the truck, not after.

From there, the process is disciplined: set the frame level, plumb, and square; anchor per the manufacturer’s engineering; apply AAMA 812 low-expansion foam to every perimeter joint; install flashing and sill pan per AAMA 2400/2410 standards; mount the slab and calibrate the pivot for smooth operation; complete a water test; and clean the site. Fort Worth’s clay soil is notorious for foundation movement, so we pay special attention to how the slab sits relative to the frame and allow for the seasonal movement this region is known for.

When we install a VLX 100, the workmanship is warranty-safe because it follows the manufacturer’s specified installation path. That is the entire value of working with an authorized ViewLux installation partner in Fort Worth: the product comes from a factory you trust, and the install comes from a local team that has to face you at the grocery store if something goes wrong. We take that seriously.

Frequently Asked Questions – VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door in Fort Worth? The VLX 100 is a made-to-order product, so expect a lead time ranging from 6 to 10 weeks from order confirmation to delivery at our Fort Worth shop. Custom finishes and laminated glass can push that toward the longer end, so we recommend starting the process early, especially if your build has a hard closing date. Call (682) 900-6694 and we can check current factory schedules for your exact configuration.

Does the VLX 100 qualify for energy tax credits? The VLX 100 can contribute to an energy tax credit if it is configured with qualifying Low-E glass and meets the applicable solar heat gain coefficient and U-factor thresholds for the South-Central climate zone that includes Fort Worth. Every configuration is different, so bring your goals to our team and we will help you select glass that balances energy performance with the look you want. Call (682) 900-6694 and we will walk through qualifying options.

What warranty comes with the VLX 100 Pivot Door? ViewLux provides a manufacturer warranty on the aluminum frame, finish, and glass, with specific terms for commercial versus residential installations. The pivot hardware carries its own coverage through the manufacturer of the hinge mechanism. Installation workmanship performed by Lightwell Windows Fort Worth is backed by our own workmanship coverage, which protects you against install-related issues that a factory warranty will not. We can provide full warranty documentation during your estimate.

Can I customize the size of the VLX 100? The VLX 100 can be ordered at sizes up to 60 inches wide by 120 inches tall, and within that range, there is flexibility for custom dimensions, though not every width-to-height ratio is practical for a pivot system. Your rough opening, the glass weight, and the pivot capacity all have to work together. During your free on-site measurement, we will tell you exactly what works and what does not. Call (682) 900-6694 to schedule that visit.

How do I maintain aluminum door frames in Fort Worth’s climate? Aluminum frames need almost no maintenance compared to wood or fiberglass, especially in a climate like Fort Worth with high UV, summer heat, and seasonal dust. Wash the frame and glass with mild soap and water two or three times a year, and keep the bottom track or sill free of dirt and debris so drainage channels stay clear. Powder-coated and anodized finishes should not be exposed to harsh solvents or abrasive pads. If you keep those basics up, the finish will hold its color for years, even on west-facing entries that take the full Texas afternoon sun.

Get a Quote – VLX 100 Pivot Door in Fort Worth

The VLX 100 is a serious entry statement, and pricing depends on your size, glass package, and finish, so let us put real numbers on it for your Fort Worth home. Call (682) 900-6694 to start a project conversation or schedule a free on-site measurement. We will walk your entry, confirm what works, and give you a written line-item quote so you know exactly what the door costs before you commit to anything.

Written by the team at Lightwell Windows Fort Worth, authorized ViewLux installation partner serving Fort Worth, TX and the surrounding North Texas area.
